Main features:

Specially designed integrated pressurizing cylinder to ensure the stability and follow-up of pressurization and welding speed;

Multi channel forced water cooling system to ensure long-term operation reliability and prolong the service life of the equipment;

The upper and lower electrodes are pressurized with auxiliary stroke to improve the maximum service life of the electrode;

The speed of the pressurizing electrode can be adjusted arbitrarily to slow down the impact on the welded object and reduce the noise generated during welding;

The secondary conductive part adopts up-down insulation, which can avoid the short circuit accident of the insulating part when the iron pin is assisted or the welding workpiece is installed on the lower seat;

The transformer adopts low impedance design, and the secondary circuit adopts high-quality conductive materials to reduce internal friction, obtain small input and greater welding current;

The operation interface adopts nixie tube or liquid crystal display, which is clear, clear and intuitive;

The whole process of the equipment adopts vibrating disc and multi station rotary table to automatically feed, sort and combine for welding and automatic unloading, so as to realize full-automatic welding.

Main parameters:

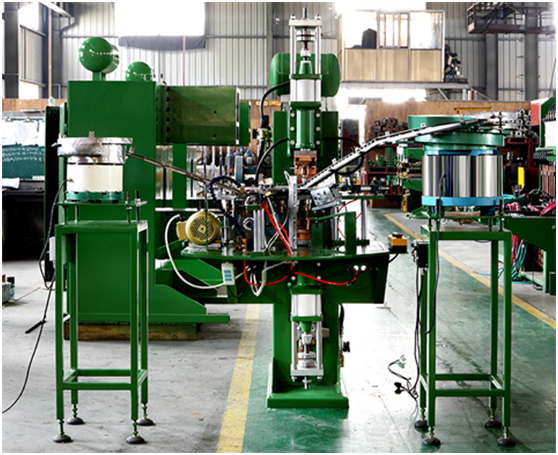

Dn-150 special welding machine for tire nut

Main technical parameters

name parameter Company remarks

Rated power one hundred and fifty KVA

Rated voltage three hundred and eighty V

Secondary maximum short circuit current thirty-six KA

Load duration 20%

Cable cross-sectional area fifty mm ²

Welding transformer one hundred and fifty KVA

Feeding mode Indexing disc

Cooling mode water-cooling

Feeding mode Vibrating disk

Maximum welding speed sixty PCs. / min

Cooling water pressure zero point three Mpa

Cooling water flow four L/min

Cooling water temperature 0≤30 ℃

Air source pressure zero point six Mpa
